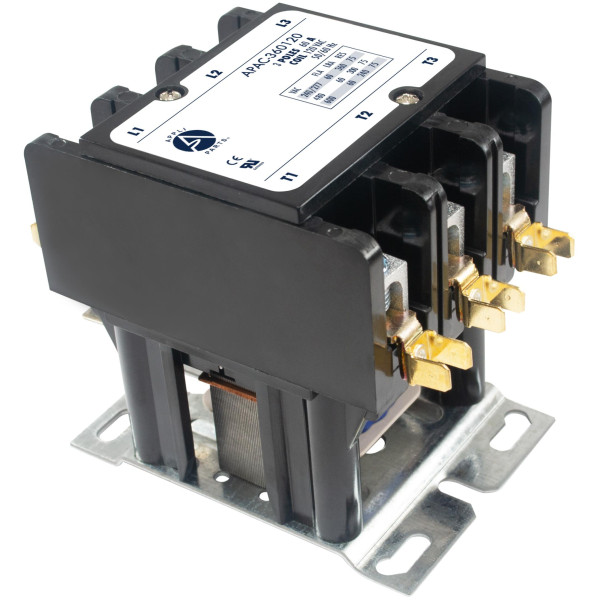

Appli Parts APAC-360120 Heavy Duty Contactor 3 Poles 60A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Price per Each

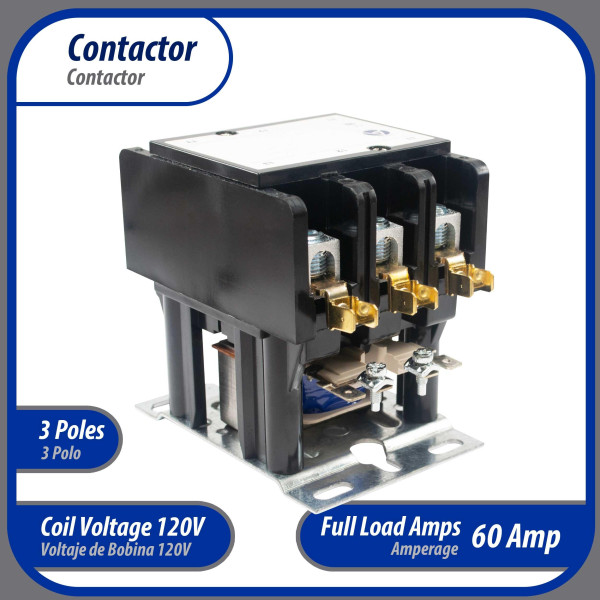

Application: Heavy-duty 3 Poles 60A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 60A full load (FLA). Locked rotor (LRA): 240/277V 360A, 480V 300A, 600V 240A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 45 Ohm (DC measurement, coil 120V). Switching capacity: 75A (resistive load: FLA 60A, LRA: 240/277V at 360A, 480V at 300A, 600V at 240A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 93V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C360B, 17636, 42EF35AFBCI, 91632, C25FNF360A, CR353FF3BA1, GDP6031, HCCY3XT06CJ303. Confirm cross-reference and specifications before replacement.
Weight : 1.6 LBR
Volume : 0.03111437 FTQ
Model : APAC-360120
UPC-EAN : 814245022068
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
5B097, 42EF35AF, 42EF35AFBCI, 49C091, 8910DPA63V02, 8910NO3, 17636, 61471, 61472, 91632, 912306001, C3L60B, C25FNF360A, CON-3/120/60, CR353FF3BA1, DP3060B1008, DP3060B5009, DP3060B5010, DP360120F, DP601203, DPE603120, EC603120, GDP6031, HCCY3XT06CJ303, SE3714M, TMX360B2
Fits: H1CA240A25A, H1CA240A40A, H1CA240A46A, H1CA240A58A, H1CA480A25A, H1CA480A40A, H1CA480A46A, H1CA480A50A, H1CA480A58A, H1CA600A25A, H1CA600A40A, H1CA600A46A, H1CA600A58A
Ficha de datos
- Product Feature
- Application: Heavy-duty 3 Poles 60A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C360B, 17636, 42EF35AFBCI, 91632, C25FNF360A, CR353FF3BA1, GDP6031, HCCY3XT06CJ303. Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 45 Ohm (DC measurement, coil 120V). Switching capacity: 75A (resistive load: FLA 60A, LRA: 240/277V at 360A, 480V at 300A, 600V at 240A). Nominal Inrush 138VA at 50Hz / 130VA at 60Hz, Nominal Sealed 18VA at 50Hz / 13VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 93V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 3 Poles 60A full load (FLA). Locked rotor (LRA): 240/277V 360A, 480V 300A, 600V 240A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 1.6 LBR
- Volume
- 0.03111437 FTQ
- Model
- APAC-360120
- UPC-EAN
- 814245022068
