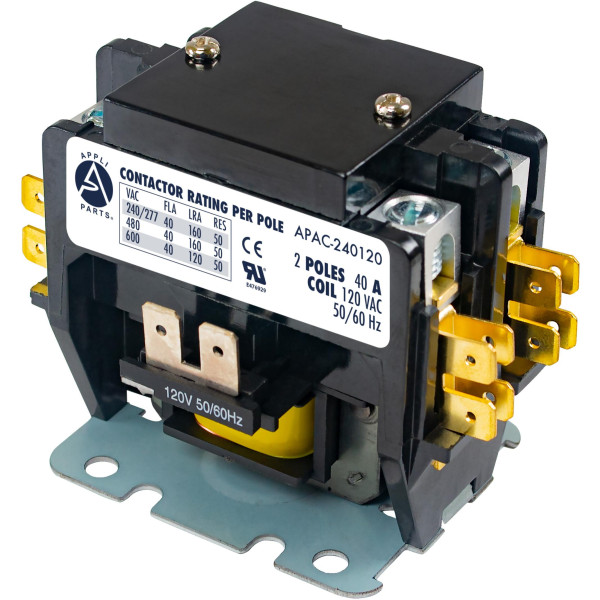

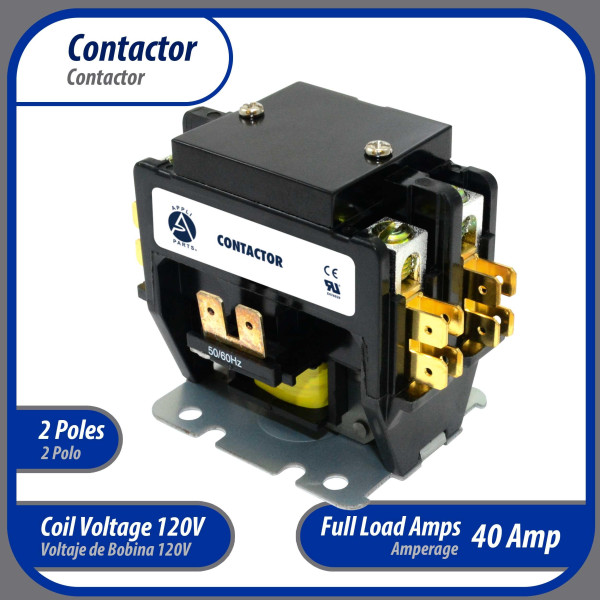

Appli Parts APAC-240120 Heavy Duty Contactor 2 Poles 40A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
$22.76
Price per Each
Price per Each
SKU
G0323.4021
Appli Parts APAC-240120 Heavy Duty Contactor 2 Poles 40A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 2 Poles 40A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 160A, 480V 160A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 160A, 480V at 160A, 600V at 120A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C240B / 17426 / 45GG20AF / 91422 / C25BNB240A / HCCY2XT04GG303 Confirm cross-reference and specifications before replacement.
Weight : 0.83 LBR
Volume : 0.01443142 FTQ
Model : APAC-240120
UPC-EAN : 814245022037
Application: Heavy-duty 2 Poles 40A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 160A, 480V 160A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 160A, 480V at 160A, 600V at 120A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C240B / 17426 / 45GG20AF / 91422 / C25BNB240A / HCCY2XT04GG303 Confirm cross-reference and specifications before replacement.
Weight : 0.83 LBR
Volume : 0.01443142 FTQ
Model : APAC-240120
UPC-EAN : 814245022037
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
4DD05, 5KAL0, 6GNU9, 6GNX7, 42CF15AF, 45GG20AF, 45GG20AFL, 49C076, 8910DP42V02, 8910DPA42V02, 17426, 61356, 61441, 61756, 72941, 91422, C25BNB240A, C25BNF240B, C240B, CON-2/120/40, CR453CE2ABB, DP2040B1002, DP401202, DP402120, DPE402120, DPE403120, EC402120, HCCY2XT04GG303, SE2741M, TMX240B2
G0323.4021
New
Ficha de datos
- Product Feature
- Application: Heavy-duty 2 Poles 40A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C240B / 17426 / 45GG20AF / 91422 / C25BNB240A / HCCY2XT04GG303 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 50A (resistive load: FLA 40A, LRA: 240/277V at 160A, 480V at 160A, 600V at 120A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 2 Poles 40A full load (FLA). Locked rotor (LRA): 240/277V 160A, 480V 160A, 600V 120A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 0.83 LBR
- Volume
- 0.01443142 FTQ
- Model
- APAC-240120
- UPC-EAN
- 814245022037
