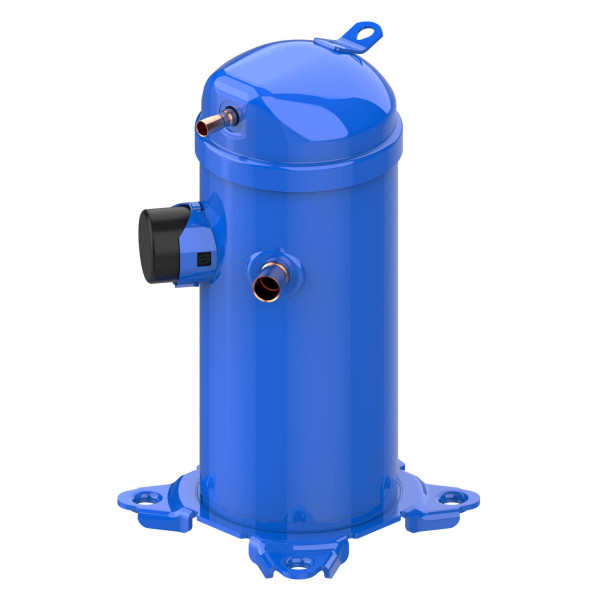

Danfoss HRP047T2LP6 3.9 tons 47,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/3/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L1126 Replaces HRM047T2LP6
Price per Each
Use: Scroll Compressor Replacement for Air Conditioning Units
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.33L PVE Oil Charge, Internal overload protector
Weight : 80.0 LBR
Model : HRP04722LP6
UPC-EAN : 5702428206778
Scroll Compressor HRP047T2LP6 – Danfoss 121L1126
The Danfoss HRP047T2LP6 is a high-performance scroll compressor designed for air conditioning systems using R407C refrigerant. This three-phase compressor operates on 200-220V/3/50Hz or 208-230V/3/60Hz, delivering dependable cooling for residential and light commercial applications up to approximately 4 tons. Built with a fixed-speed hermetic scroll design, it ensures low sound levels, excellent reliability, and energy-efficient operation under demanding conditions.
Key Features
- Refrigerant: R407C
- Cooling Capacity: Approx. 48,000 BTU/h (4 Tons)
- Power Supply: 200-220V/3/50Hz or 208-230V/3/60Hz
- Oil Type: PVE, 1.33 L charge (320HV)
- Compressor Type: Hermetic Scroll – Fixed Speed
- Max Working Pressure: 31.1 bar (450 psig)
- Discharge Connection: 1/2 inch ODF
- Suction Connection: 7/8 inch ODF
- Motor Protection: Internal overload protector
- Certifications: UL, CE, UKCA compliant
Applications
Ideal for ducted split systems, packaged rooftop units, and other air conditioning solutions requiring efficient scroll compression with R407C refrigerant in three-phase systems.
Competitor Equivalent Part Numbers
- Copeland ZR47K3E-TFD
- Tecumseh AG4560E
- Emerson ZR47K5E-TFD
Frequently Asked Questions
- What is the cooling capacity of the HRP047T2LP6?
It offers approximately 48,000 BTU/h or 4 tons of cooling, depending on system conditions. - What type of oil does it use?
This model is charged with 1.33 liters of PVE oil, type 320HV. - Is it compatible with R22 or other refrigerants?
No, this compressor is optimized for R407C only. - When should I consider replacing this unit?
Replacement is recommended when symptoms like low compression, locked rotor, internal electrical faults, or burnout occur. Always check for compatible voltage and refrigerant before replacement.

Ficha de datos
- Product Feature
- Aditional Details: 1.33L PVE Oil Charge, Internal overload protector
- Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
- Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
- Use: Scroll Compressor Replacement for Air Conditioning Units
- Weight
- 80.0 LBR
- Model
- HRP04722LP6
- UPC-EAN
- 5702428206778
