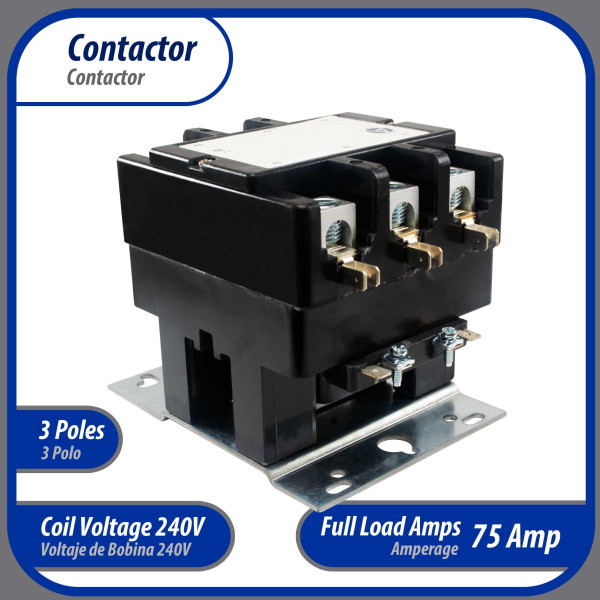

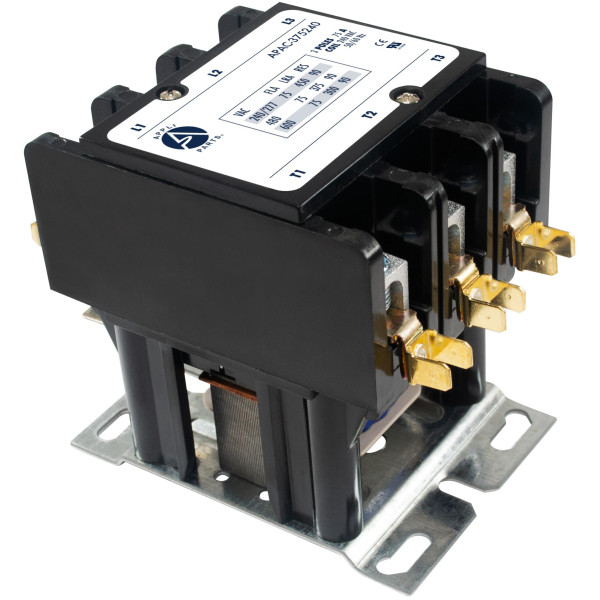

Appli Parts APAC-375240 Heavy Duty Contactor 3 Poles 75A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
$89.14
Price per Each
Price per Each
SKU
G0323.7532
Appli Parts APAC-375240 Heavy Duty Contactor 3 Poles 75A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 3 Poles 75A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 64 Ohm (DC measurement, coil 208/240V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375C / 17737 / 42FE35AG106 / C25FNF375B / CR353EG3BB1AB / GDP7032 / HCCY3XU07CJ303 Confirm cross-reference and specifications before replacement.
Weight : 3.76 LBR
Volume : 0.0544 FTQ
Model : APAC-375240
UPC-EAN : 814245022105
Application: Heavy-duty 3 Poles 75A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 64 Ohm (DC measurement, coil 208/240V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375C / 17737 / 42FE35AG106 / C25FNF375B / CR353EG3BB1AB / GDP7032 / HCCY3XU07CJ303 Confirm cross-reference and specifications before replacement.
Weight : 3.76 LBR
Volume : 0.0544 FTQ
Model : APAC-375240
UPC-EAN : 814245022105
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
01-0137, 42FE35AG106, 42FE35AL, 56JY12, 8910DPA73V09, 17737, 61482, 91733, 912307502, C3L75C, C25FNF375B, C375C, CON-3/240/75, CR353EG3BB1, CR353EG3BB1AB, DP3075C1005, DP3075C5006, DP375240F, DP752403, DP753240, DPE753240, EC753240, GDP7032, HCCY3XU07CJ303, HN53HG240, SE3718M, TMX375C2
G0323.7532
New
Ficha de datos
- Product Feature
- Application: Heavy-duty 3 Poles 75A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C375C / 17737 / 42FE35AG106 / C25FNF375B / CR353EG3BB1AB / GDP7032 / HCCY3XU07CJ303 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 64 Ohm (DC measurement, coil 208/240V). Switching capacity: 90A (resistive load: FLA 75A, LRA: 240/277V at 450A, 480V at 375A, 600V at 300A). Nominal Inrush 285VA at 50Hz / 240VA at 60Hz, Nominal Sealed 42VA at 50Hz / 27VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 3 Poles 75A full load (FLA). Locked rotor (LRA): 240/277V 450A, 480V 375A, 600V 300A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 3.76 LBR
- Volume
- 0.0544 FTQ
- Model
- APAC-375240
- UPC-EAN
- 814245022105
Download
