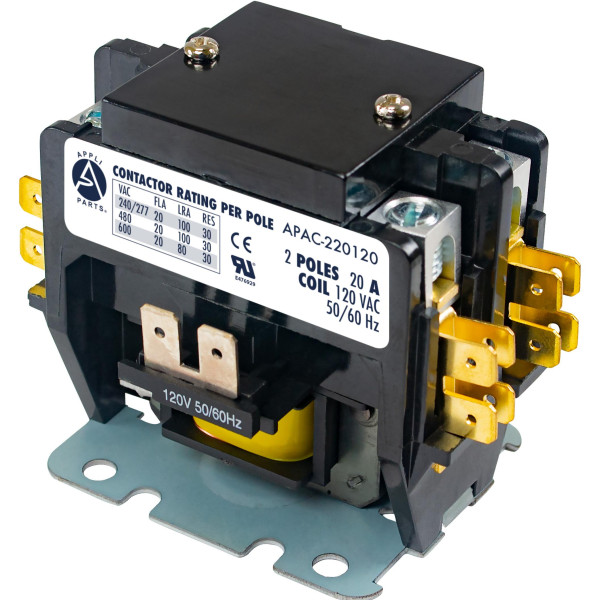

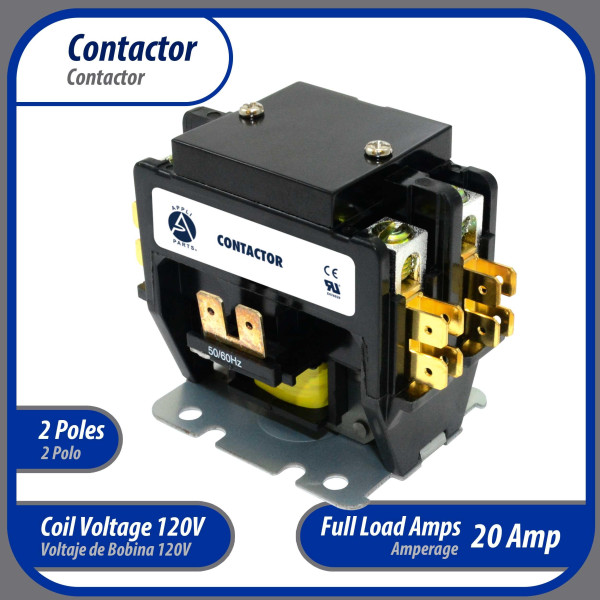

Appli Parts APAC-220120 Heavy Duty Contactor 2 Poles 20A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
$22.76
Price per Each
Price per Each
SKU
G0323.2021
Appli Parts APAC-220120 Heavy Duty Contactor 2 Poles 20A 120V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929
Application: Heavy-duty 2 Poles 20A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220B / 17122 / 17126 / 45CG20AF / C25BNB220A / HCCY2XT00AA303 / L41-431 Confirm cross-reference and specifications before replacement.
Weight : 0.83 LBR
Volume : 0.01383011 FTQ
Model : APAC-220120
UPC-EAN : 814245022006
Application: Heavy-duty 2 Poles 20A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220B / 17122 / 17126 / 45CG20AF / C25BNB220A / HCCY2XT00AA303 / L41-431 Confirm cross-reference and specifications before replacement.
Weight : 0.83 LBR
Volume : 0.01383011 FTQ
Model : APAC-220120
UPC-EAN : 814245022006
Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929
This product replaces several part numbers, models and brands not limited to:
6GNR2, 6GNZ2, 45CG20AF, 49C067, 17122, 17126, C25BNB220A, C220B, DP2020B5039, HCCY2XT00AA303, L41-431, N4102
G0323.2021
New
Ficha de datos
- Product Feature
- Application: Heavy-duty 2 Poles 20A 120V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
- Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C220B / 17122 / 17126 / 45CG20AF / C25BNB220A / HCCY2XT00AA303 / L41-431 Confirm cross-reference and specifications before replacement.
- Coil Data: Resistance 237 Ohm (DC measurement, coil 120V). Switching capacity: 30A (resistive load: FLA 20A, LRA: 240/277V at 100A, 480V at 100A, 600V at 80A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
- Electrical Performance: Maximum Pick-Up 88V, Minimum Drop-Out 20/70V, Maximum Voltage 132V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
- Ratings: 2 Poles 20A full load (FLA). Locked rotor (LRA): 240/277V 100A, 480V 100A, 600V 80A, UL Certified E476929 for reliable operation and long service life.
- Weight
- 0.83 LBR
- Volume
- 0.01383011 FTQ
- Model
- APAC-220120
- UPC-EAN
- 814245022006
