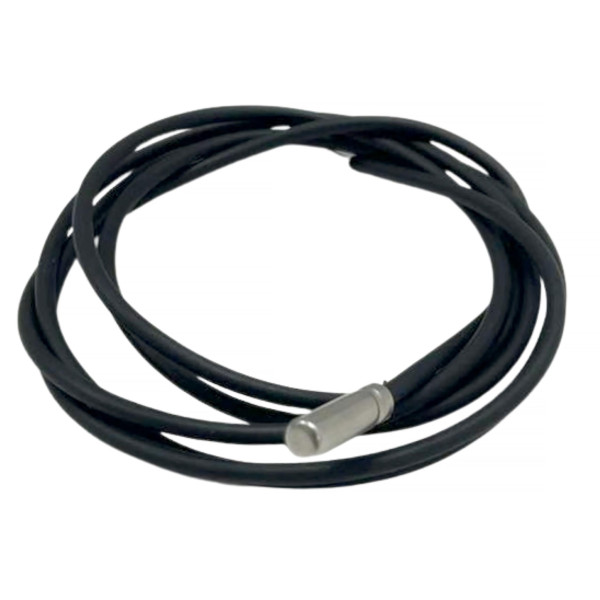

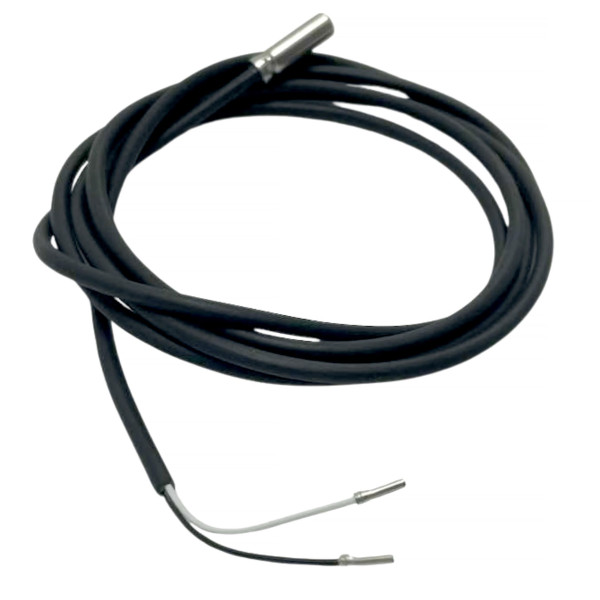

Danfoss EKS 221 Temperature Sensor for Electronic Controller 1.5 m, NTC 10000 Ohm, -58 to 230 F (-50 to 110 C), IP68, AISI 304, 084N3200
26,60 $
SKU
G2401.EKS221
Danfoss EKS 221 Temperature Sensor for Electronic Controller 1.5 m, NTC 10000 Ohm, -58 to 230 F (-50 to 110 C), IP68, AISI 304, 084N3200
10,000 Ohm NTC sensor: NTC sensing element with nominal resistance of 10 kOhm at 77 F (25 C) and +/-1% tolerance, designed for temperature measurement in electronic control systems
Wide temperature range: measures from -58 to 230 F (-50 to 110 C), suitable for refrigeration and temperature control applications
1.5 m sensor cable: includes a fixed 1.5 m (59.06 in) cable with 2 conductors and thermoplastic rubber jacket; cable temperature range -58 to 248 F (-50 to 120 C)
IP68 protection: IP68-rated construction with AISI 304 stainless steel protective tube for applications where resistance to moisture is required
Dimensions and certification: protective tube measures 0.24 in (6 mm) diameter x 0.79 in (20 mm) length; CE marked, Danfoss part number 084N3200
Weight : 0.5 LBR
Volume : 0.01692708 FTQ
Model : 084N3200
10,000 Ohm NTC sensor: NTC sensing element with nominal resistance of 10 kOhm at 77 F (25 C) and +/-1% tolerance, designed for temperature measurement in electronic control systems
Wide temperature range: measures from -58 to 230 F (-50 to 110 C), suitable for refrigeration and temperature control applications
1.5 m sensor cable: includes a fixed 1.5 m (59.06 in) cable with 2 conductors and thermoplastic rubber jacket; cable temperature range -58 to 248 F (-50 to 120 C)
IP68 protection: IP68-rated construction with AISI 304 stainless steel protective tube for applications where resistance to moisture is required
Dimensions and certification: protective tube measures 0.24 in (6 mm) diameter x 0.79 in (20 mm) length; CE marked, Danfoss part number 084N3200
Weight : 0.5 LBR
Volume : 0.01692708 FTQ
Model : 084N3200
G2401.EKS221
Nou
Fitxa tècnica
- Product Feature
- 1.5 m sensor cable: includes a fixed 1.5 m (59.06 in) cable with 2 conductors and thermoplastic rubber jacket; cable temperature range -58 to 248 F (-50 to 120 C)
- 10,000 Ohm NTC sensor: NTC sensing element with nominal resistance of 10 kOhm at 77 F (25 C) and +/-1% tolerance, designed for temperature measurement in electronic control systems
- Dimensions and certification: protective tube measures 0.24 in (6 mm) diameter x 0.79 in (20 mm) length; CE marked, Danfoss part number 084N3200
- IP68 protection: IP68-rated construction with AISI 304 stainless steel protective tube for applications where resistance to moisture is required
- Wide temperature range: measures from -58 to 230 F (-50 to 110 C), suitable for refrigeration and temperature control applications
- Weight
- 0.5 LBR
- Volume
- 0.01692708 FTQ
- Model
- 084N3200
- Origin
- USA
